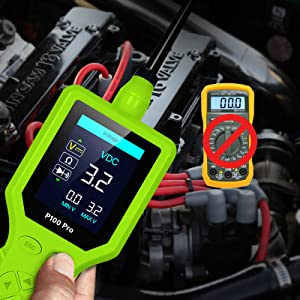

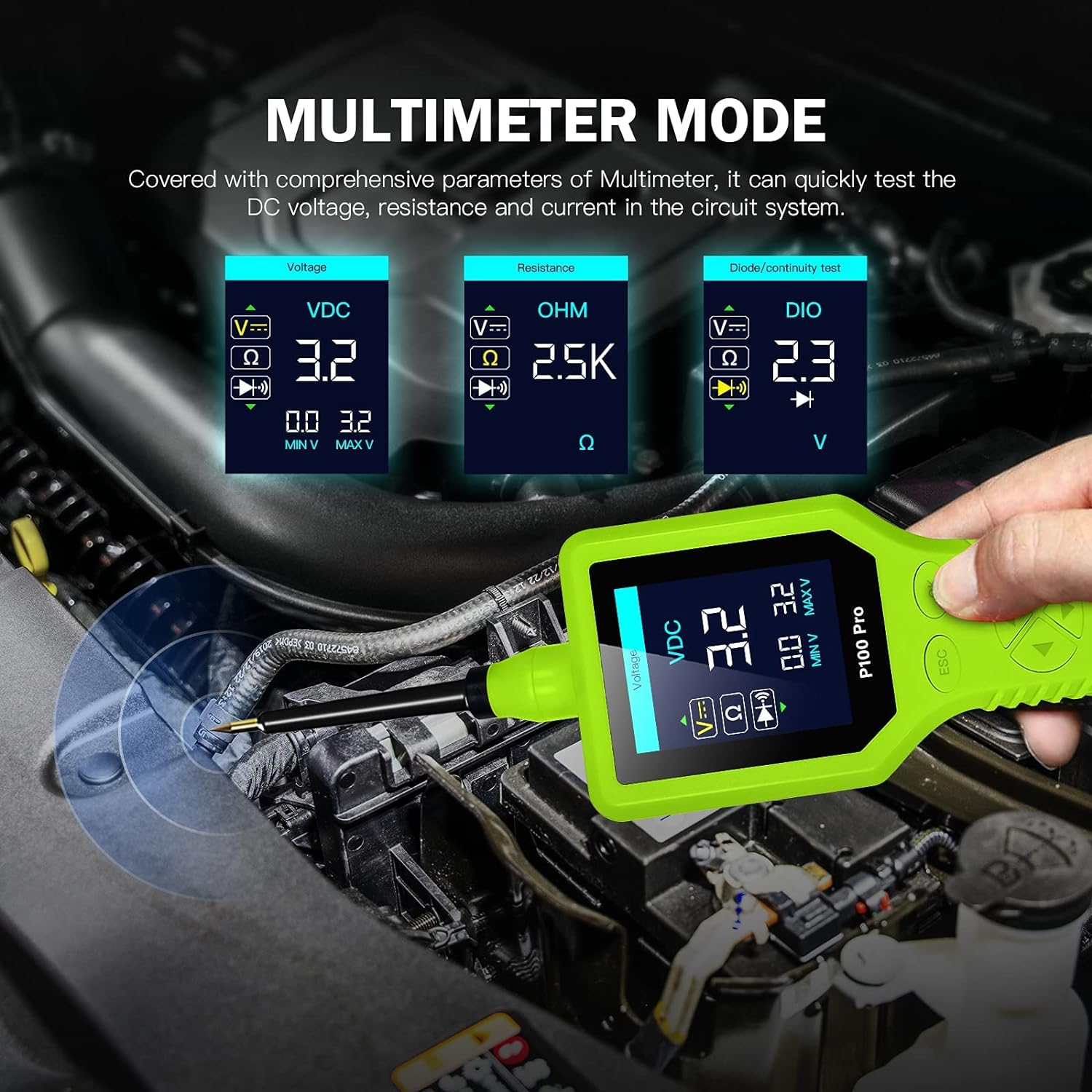

Upgraded Multimeter
To use the multimeter mode, You need to press the button to switch the test mode, and the LCD will read the DC voltage (VDC), resistance (OHM), Diode/continuity test (DIO)
0-5V Power Supply
0-5V power supply mode is designed as an active mode, but the function is different from the component activation mode. It can adjust the voltage output under 5V and limit the current under 100mA. (This is safe to avoid burning out electric

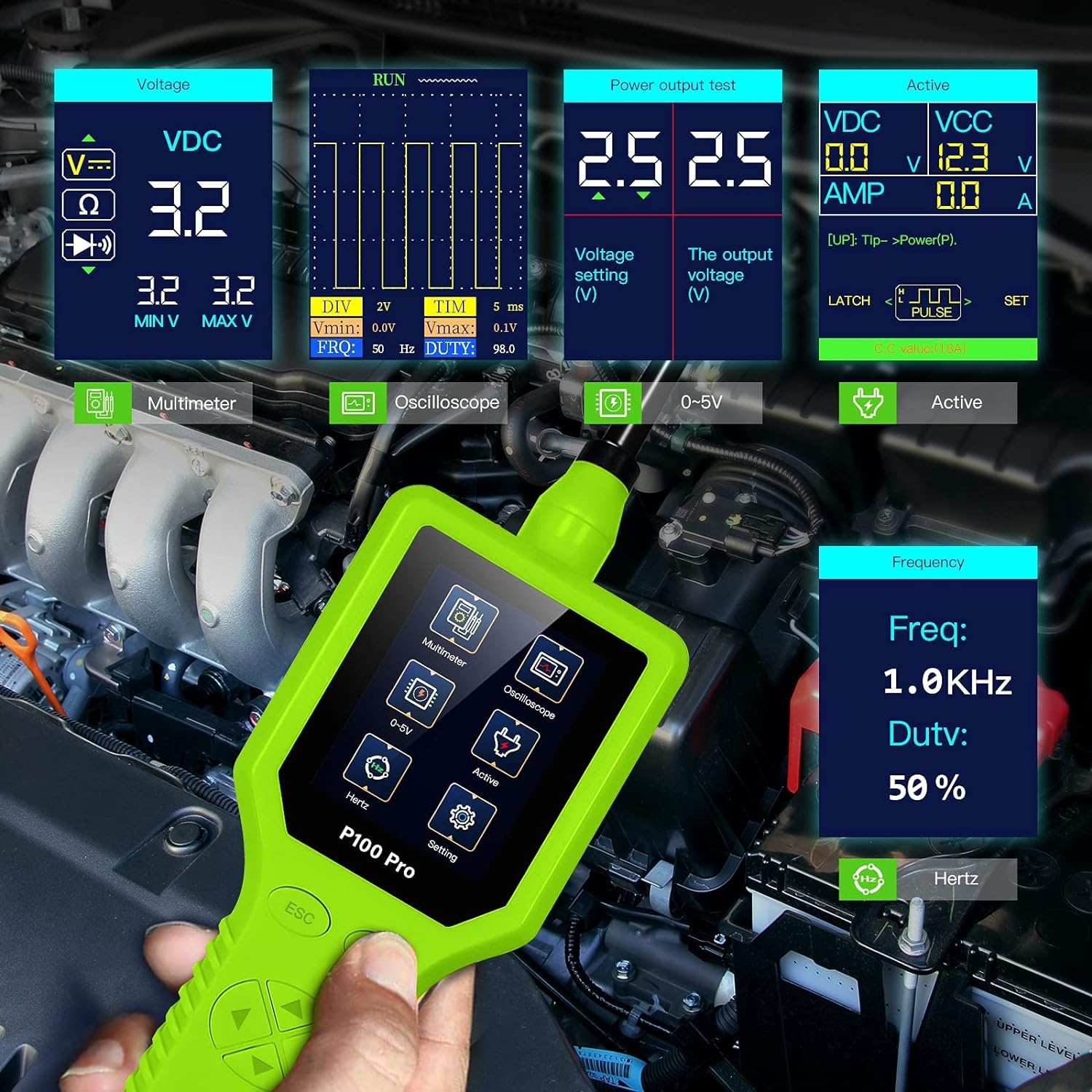

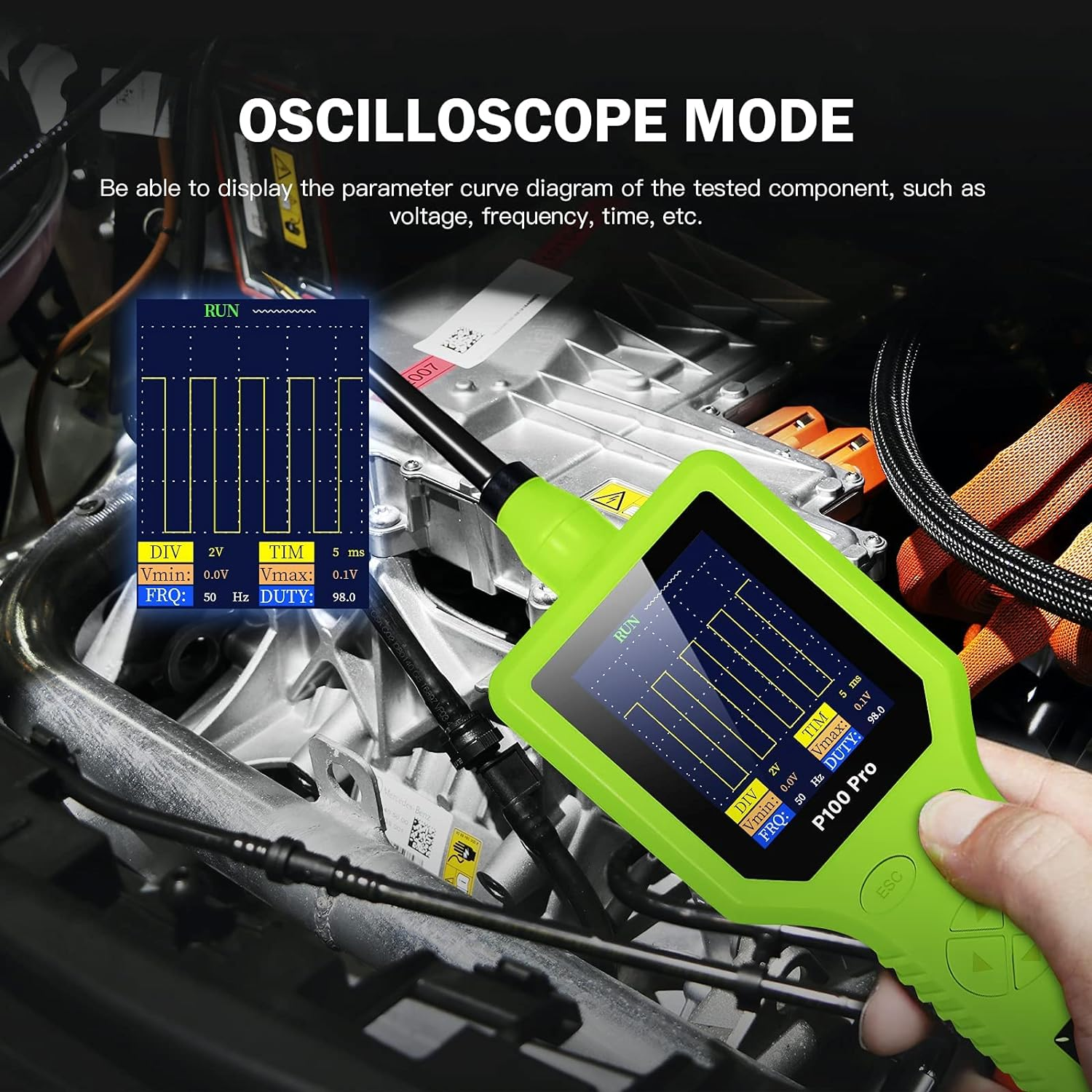

Oscilloscope Powerful Functions
Use an OBD2 Scanner to read out the FAULT CODE(DTC) from the vehicle and found the problem is with some kind of sensor circuit, there is a fast way to test the sensors conditions with this probe.

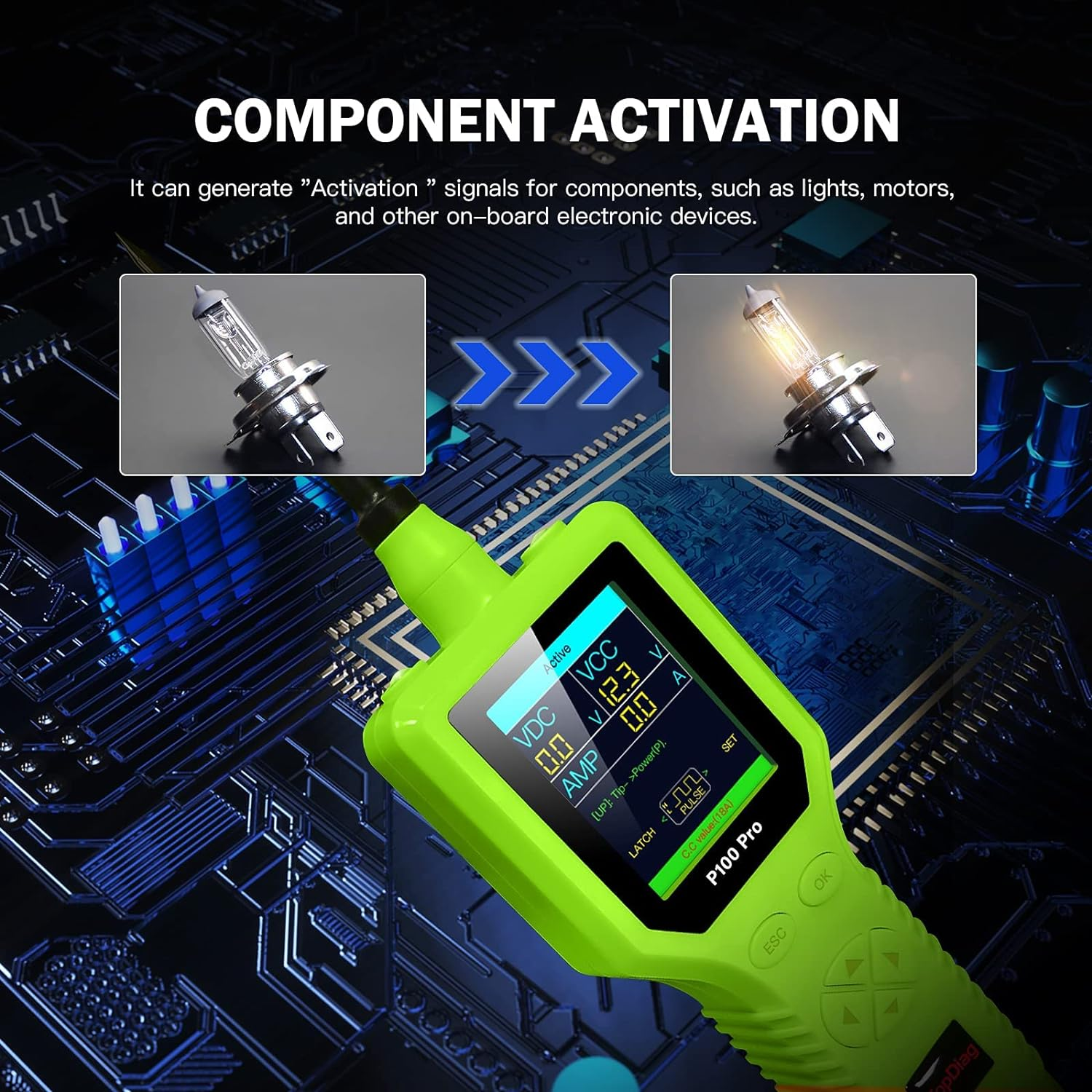

C omponent Activation
The component activation function is Designed to generate activation signals to the tested components, such as activating lights, motors and other on-board electric equipments.(To Avoid burning out the Component, Please refer to the specification and parameter of component and then Set the OVERLOAD CURRENT VALUE)
Trailer Lights and Connection Test
When the Probe is in Multimeter or SMART Test , Connect the Probe auxiliary ground lead to the trailer light, and insert the Probe Tip into the OBD socket to display the current voltage.
Following & Locating Short Circuits
In most cases, a short circuit will appear as a blown fuse or a tripping of an electrical protection device (such as a circuit breaker tripping).
Screen Saver
When receiving the product, be sure to tear off the screen protective film (the screen protective film is thin and difficult to find, please look for it carefully)
