Passenger Vehicle List
Asian: Tata (India), Mahindra (India), Maruti (India), Hyundai, Toyota, Honda, Nissan, ISUZU, Mitsubishi and many more
American: Ford, Chevrolet, GM, Jeep, Fiat, Lincoln and many more
European: Audi, Benz, BMW, VW, Skoda, Bentley, Volvo, Aston martin, Jaguar, Land rover, Porsche, Renault and many more
Commercial /Truck Vehicle List
Ashok Leyland, Bharath Benz, Tata motors, Mahindra, Delphi, Scania, Isuzu, Wabco Abs, Caterpillar, Cummins, Denso Diesel, Man, Bosch, Hino, Volvo, Maxxforce, Siemens, John Deere, Miller, Iveco, Iris Bus, Kobelco, Kenworth Etc
Special Function of Truck Vehicles
Tooth learning, maximum speed, Service Data, PRV Reset, Second Max. Speed, Set High Idle, Set Idle, Starting torque, Torque limit, EGR Valve Test, Turbine bypass valve test, After treatment DPF Absence History, After treatment SCR Regeneration History, After treatment Diesel exhaust system leak test, After treatment diesel particular filter Deep clean regeneration test, Cylinder cut-out and many more
I t will Read all Vehicles modules like ECM/PCM, ABS, SRS, BCM, TCM, IMMO. EPS etc
- Module Information
- Read Fault Code
- Clear Fault Code
- Read Data Stream
- Read Freeze frame
- Actuation Test
Special Function
- Injector coding
- Read Injector code
- Write injector code

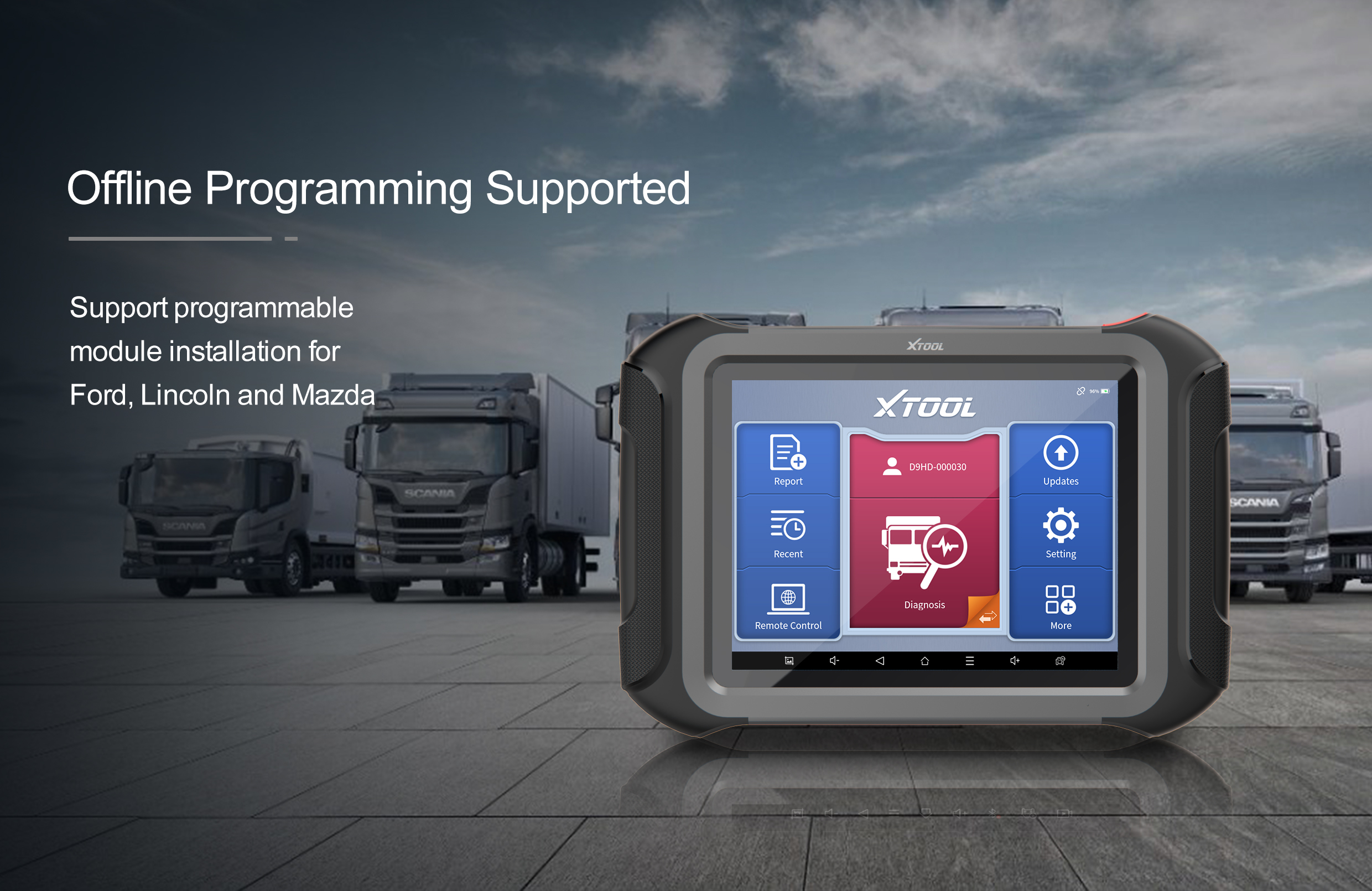

- ECM/ PCM Flashing
- Key programming(Immobilizer)
-
- Unlock ecm/immo.
- Key programming
- Remote programming
NOTE: Vehicle coverage and their features will vary; it depends on make and model. For more details please contact us on +91-9060629829 or email: [email protected]
|
Operating system
|
Android 10.0
|
|
Processor
|
Rock chip 4 core 1.80 GHz
|
|
Memory
|
2 GB RAM, 128GB ROM(202207 Version)
|
|
Display
|
9.7 inch capacitive touch screen with 1024 x 768P resolution
|
|
Communication method
|
BT 4.2 | WIFI2.4/5G
|
|
Connectivity
|
DB15 to VAG | USB 3.0
|
|
Camera
|
Rear camera, 8.0 Megapixel, AF with Flash light
|
|
Sensor
|
Gravity accelerometer, Ambient light sensor
|
|
Auto Input/ Output
|
Microphone, Dual speaker, 4-Band 3.5 mm stereo/ standard headset jack
|
|
Working voltage
|
3.6v-4.2v
|
|
Working hours
|
12Hours
|
|
Operating temperature
|
-10-40°C
|
|
Storage temperature
|
-40-60°C
|
|
Humidity
|
<90%
|
-
- Color carton
- Packing list
- Tool case
- Quick start guide
- Certificate of quality
- Desiccant
-
- Tablet
- USB 3.0 Data cable(connect to PC)
- Power cable US
- Power cable UK
- VCI Box
- Charger for tablet
- Power cable EU
-
-
-
|
DB15 main cable
|
Battery clamp cable
|
|
Jumper
|
OBD-R16
|
|
WOODWARD-3
|
ISUZU-20
|
|
DENSO-12
|
CUMMINS-9
|
|
HITACHI-6
|
VOLVO-8
|
|
HONDA-3
|
BENZ-14
|
|
TOYOTA-17
|
KIA-20
|
|
NISSAN-14
|
UNIVERSAL-3
|
|
FIAT-3
|
AUDI-4
|
|
DB15 to USB 3.0 Main cable
|
Cigar lighter cable
|
|
Jumper adapter
|
ECONTROLS-4
|
|
ISUZU-3
|
YUCHAI-4
|
|
CUMMINS-16
|
HITACHI-4
|
|
CAT-9
|
OBDII-16
|
|
BMW-20
|
BENZ-38
|
|
MAZDA-17R
|
HYUNDAI/KIA-10
|
|
GM/DAEWOO-12
|
SUZUKI-3
|
|
CITROEN-2
|
MITSUBISHI-12+16
|
